General Purpose Containers Specification
Power to lead
Container Specification
Container Specification

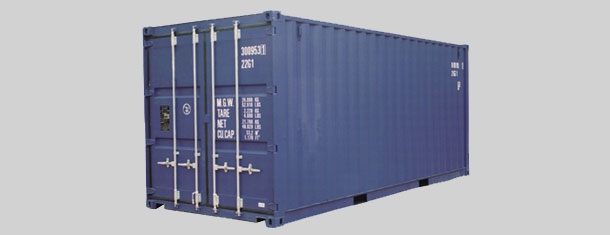

20' Standard Dry Container
| Exterior Dimensions (foot) | Length | Width | Height |
| 20' | 8' | 8' 6'' |
| Interior Dimensions (mm) | Length | Width | Height |
| 5,882 - 5,898 | 2,332 - 2,353 | 2,387 - 2,396 |
| Door Openings (mm) | | Width | Height |
| | 2,332 - 2,343 | 2,261 - 2,288 |
| Weights (kg) | Gross | Tare | Payload |
| 24,000 / 30,480 * | 2,220 - 2,350 * | 21,660 - 28,260 * |
| Volume (m³) | | | 33.0 - 33.2 |
20' 40' Standard Dry Container
| Exterior Dimensions (foot) | Length | Width | Height |
| 20' | 8' | 8' 6'' |
| Interior Dimensions (mm) | Length | Width | Height |
| 12,022 - 12,039 | 2,332 - 2,362 | 2,385 - 2,399 |
| Door Openings (mm) | | Width | Height |
| | 2,333 - 2,341 | 2,260 - 2,284 |
| Weights (kg) | Gross | Tare | Payload |
| 30,480 / 32,500 | 3,660 - 4,020 | 26,460 - 28,840 |
| Volume (m³) | | | 67.2 - 67.8 |
40' High Cube Dry Container
| Exterior Dimensions (foot) | Length | Width | Height |
| 40' | 8' | 9' 6' |
| Interior Dimensions (mm) | Length | Width | Height |
| 12,031 - 12,039 | 2,350 - 2,362 | 2,667 - 2,700 |
| Door Openings (mm) | | Width | Height |
| | 2,336 - 2,343 | 2,580 - 2,591 |
| Weights (kg) | Gross | Tare | Payload |
| 30,480 / 32,500 | 3,820 - 4,200 | 26,280 - 28,640 |
| Volume (m³) | | | 75.7 - 76.7 |
